AUTOFOCUS



Sjá síðu um Phase Detection Auto Focus [AF] og á Wiki.

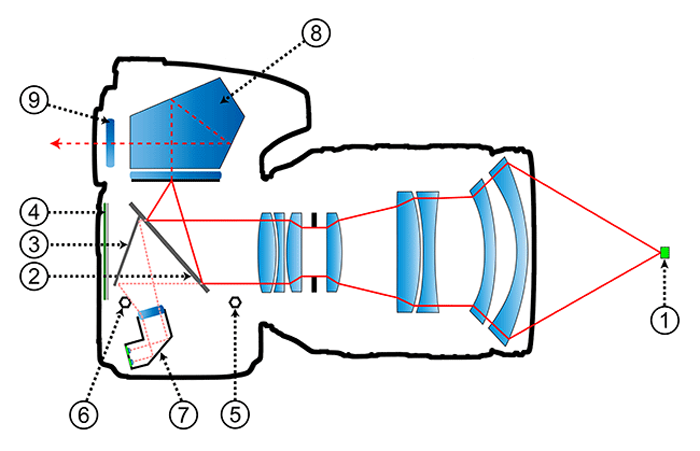

  1. Ray of light
  2. Main/Reflex Mirror
  3. Secondary Mirror, also known as “Sub-Mirror”
  4. Camera Shutter and Image Sensor
  5. Eccentric pin (1.5mm hex) for adjusting the Main Mirror
  6. Eccentric pin (1.5mm hex) for adjusting the Secondary Mirror
  7. Phase Detect Sensor (AF Sensor)
  8. Pentaprism
  9. Viewfinder
Þversnið af SLR stafrænni myndavél.

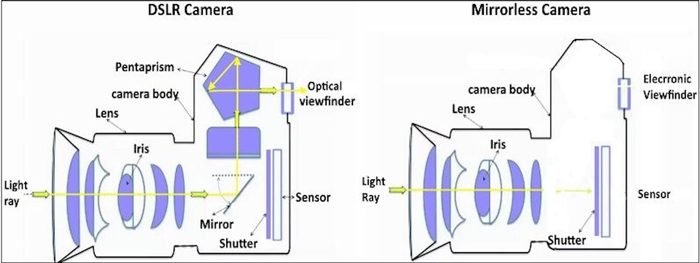

Samanburður á DSRL og spegillausrar myndavélar.

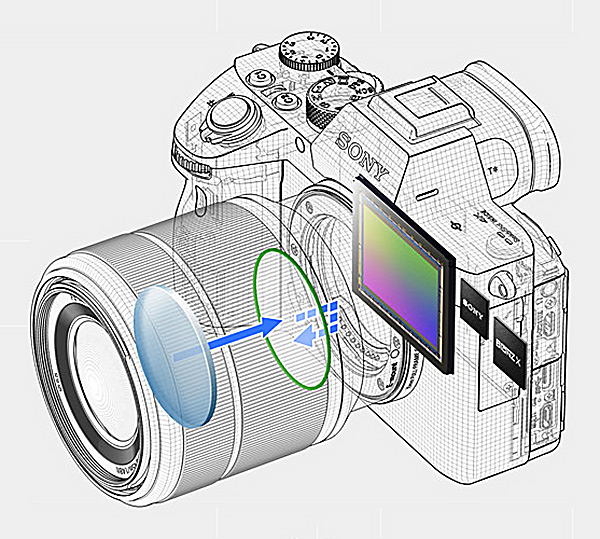

Sony α7MIII

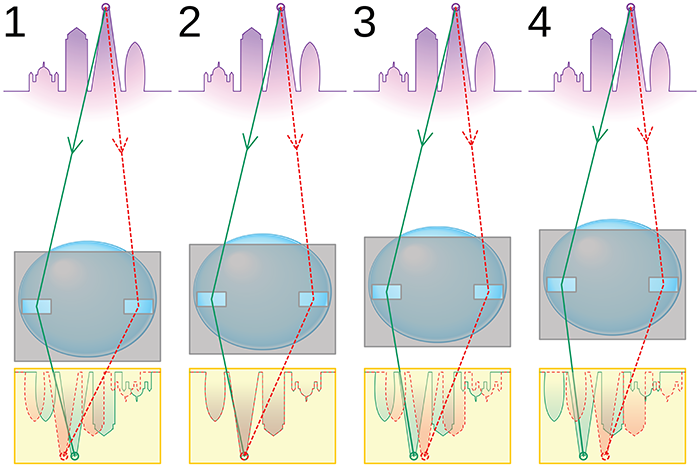

Figure 1 to 4 represent conditions where the lens is focused (1) too near, (2) correctly, (3) too far and (4) way too far. It can be seen from the graphs that the phase difference between the two profiles can be used to determine not just in which direction, but how much to change the focus to achieve optimal focus. Note that in reality, the lens moves instead of the sensor.

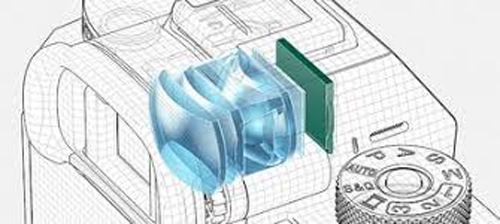

Leitari [Viewfinder] á spegillausri stafrænni vél.
